Details

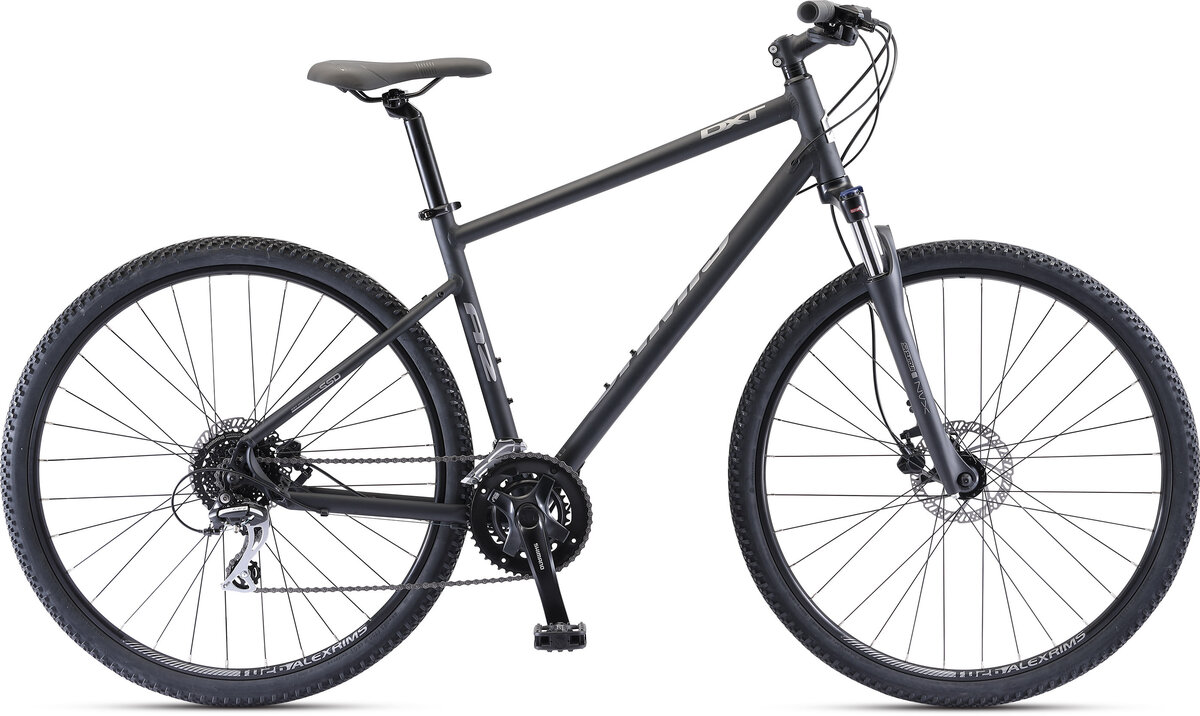

The dual-sport DXTs are pumped-up, go-anywhere/do-anything versions of a fitness bike, with more gearing range to take on steeper hills and tougher terrain, as well as wider tires with a trail-capable tread for access to more riding areas, both paved and packed. Disc brakes and suspension forks add real off-road exploration and off-pavement adventure.
Specs
Frame | Size Specific Design 6061 aluminum with fast back rear triangle, 1 1/8" head tube, internal cable routing, chain stays disc brake mounts, 34.9mm seat tube, kickstand mount, replaceable derailleur hanger, fender/rack eyelets and ring lock mount eyelets |
---|---|
Fork | SR/Suntour NVX HLO, aluminum lowers, coil spring, 28mm stanchions, 1-1/8" steerer, aluminum crown, hydraulic lock out, 75mm travel |
Headset | Internal Cup, threadless, 1 1/8" |
Rims/Wheels | Alex TD26 disc specific double wall alloy rims, 36H, alloy disc hubs with QR and 14g stainless steel spokes |
Tires | CST Dual Sport Tire, 700 x 42c |
Crankset | Shimano FC-TY501-2, 46/30, 170mm (15-17"), 175mm (19-23") |
Bottom Bracket | VP sealed cartridge, 68 x 122.5mm |
Chain | KMC Z7 |
Rear Derailleur | Shimano Acera RD-M360 rear and Shimano FD-TY710-2 front |
Cassette/Rear Cogs | Shimano HG31, 8-speed, 11-34T |
Shifters | Shimano Altus Rapid Fire SL-M315, 16-speed |
Handlebars | Jamis Riser bar, double-butted aluminum, 25.4 x 10° sweep x 20mm rise x 640mm (15"), 660mm (17-23") |
Tape/Grips | ERGO Type Grip |
Stem | Jamis Trekking, 3D forged alloy, 15° rise, Length-60mm (15-17"), 90mm (19-23") |
Brakes | Tektro HD-M275/276 hydraulic disc brakes with 160mm rotors and Tektro brake levers. 15" M276 (83mm reach); 17-23" M275 (88mm reach) |
Pedals | Platform style |
Saddle | NEW Jamis Touring with SL cover |
Seat Post | Jamis alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Ano Black / 23-inch | 845436081083 | 03-3386BK | 210000000854 |
