Details

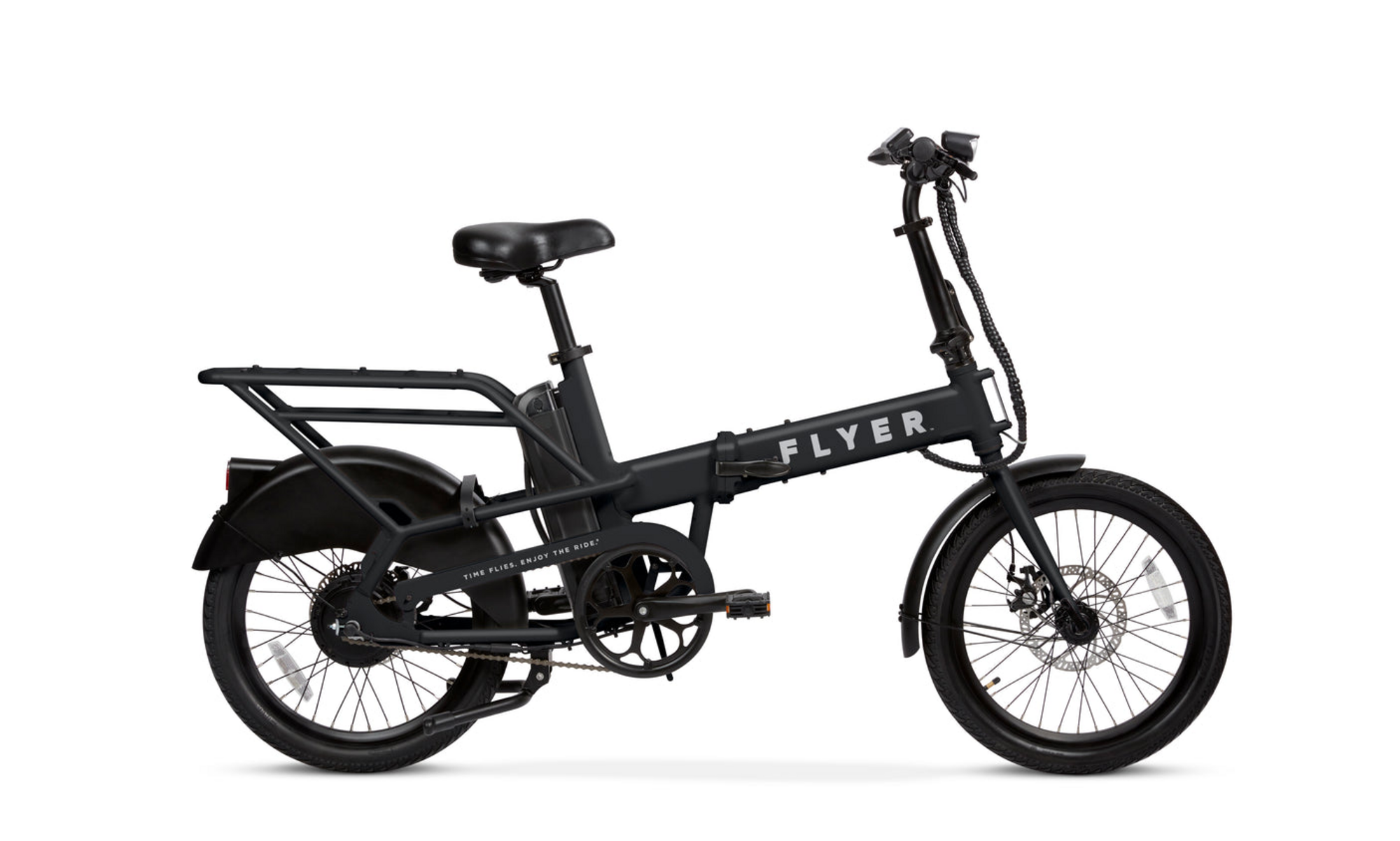

Designed for portability & compact storage, the Flyer™ Folding Cargo is the ultimate foldable electric bike for all of your adventures. Featuring an easy-to-fold bike frame, this compact eBike delivers a convenient transportation solution for you and your crew to bring along wherever you go. For riders 16 years of age and older.
Max Rider Weight 220lbs
| Size | One Size |
|---|---|
| Wheelbase (mm) | 1164 |
| Frotn Center (mm) | 704 |
| Rear Center/Chainstay Length (mm) | 470 |
| Bottom Bracket Height | 290 |
| Bottom Bracket Drop (mm) | 31 |
| Seat Tube Length (mm) | 435 |
| Seat Tube Angle | 73° |
| Head Tube Length (mm) | 140 |
| Head Tube Angle | 70.5° |
| Frame Stack (mm) | 383 |
| Frame Reach (mm) | 516 |
| Effective Top Tube Length (mm) | 632 |
| Fork Length - Axle to Crown (mm) | 32 |
| Fork Rake/Offset (mm) | 35 |
| Trail (mm) | 49 |
Specs
| Frame | 6061 Aluminum Frame |
|---|---|
| Fork | Steel Fork, 1-1/8", 320mm AC/35mm Rake, ISO Disc Tab |
| Rims | Alloy Double Wall (36H Front) (36H Rear) |
| Hubs |
Front: Bolt on 9mm axle Sealed Ball Bearing Rear: 12mm Axle 18mm Nut, Sealed Bearing, HubMotor |
| Tires | 20" x 2.125" |
| Crankset | 170mm Forged Alloy |
| Chainrings | 52T/Dual Sided Guard |
| Cassette/Freewheel | 14T Single Speed Freewheel |
| Chain | KMC Single Speed |
| Brakes | Tektro Aries MD-M300 with Black Resin Pads |
| Rotors | Tektro 180mm |
| Brake Levers | Tektro Aries with Bell & Motor Cut Of |
| Handlebars | 600mm Wide, 25.4mm Clamp, 22mm Rise, 7* Back Sweep |
| Tape/Grips | Rubber/Aluminum Clamp on |
| Stem | 300mm Length, Hegiht Adjustable Folding, 31.8mm clamp |
| Headset | 1-1/8" Semi Integrated - Loose Ball |
| Seatpost | 31.6mm Diameter, 350mm length, 20mm offset |
| Saddle | Comfort Foam |
| Pedals | Folding - Integrated reflectors, 9/16" x 20 TPI threads |
| Accessories & Extras |
Head Light: LED Taillight: LED with Integrated Brake Light and Turn Signal Functions Fender: Front Fender and Rear Fender with Side Covers Included Kickstand: Rigid, 2 Leg Center Stand |
| Motor | 350W Brushless Hub Motor, 45 N•m |
| Battery | 48V 9.8Ah (480Wh) UL Tested Lithium-Ion Samsung 50E 21700 Cells |
* Subject to change without notice.
Videos
Folding Cargo Electric Bike | Flyer™
Trusted by families for over 100 years, Radio Flyer is reimagining transportation for the modern family with the new Flyer™ Folding Cargo e-bike. Made for convenient storage and travel, this folding e-Bike can be easily transported and stored. Take on challenging hills with ease thanks to the 5-level pedal assist or use the thumb throttle to cruise without pedaling. With a powerful built-in 500W rear hub motor and 48V 10Ah lithium-ion UL 2271 tested battery, the Flyer™ Folding Cargo can reach up to 20 MPH with the throttle and travel up to 50 miles per charge. The custom LED display controls the pedal assist level and features a speedometer as well as a USB port for charging devices. The aluminum frame folds easily in 2 steps with no tools necessary and the sturdy kickstand adds stability when storing. The comfort seat and handlebars are adjustable to optimize fit for riders. Stow your travel necessities, groceries, or child with the rear cargo rack and compatible Flyer™ accessories. Designed with safety in mind, the LED headlight, integrated taillight with brake light, and reflectors increase visibility while on the go. The automatic motor cutoff switch safely stops the bike when you brake. Available for pre-order now: https://flyer.radioflyer.com/flyer-860.html
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black / One Size / 20-inch | 0042385116976 | 860BK | 210000004963 |
| Red / One Size / 20-inch | 0042385116983 | 860R | 210000004959 |
| White / One Size / 20-inch | 0042385116990 | 860W | 210000005450 |
| Green / One Size / 20-inch | 0042385117003 | 860G | 210000004961 |
