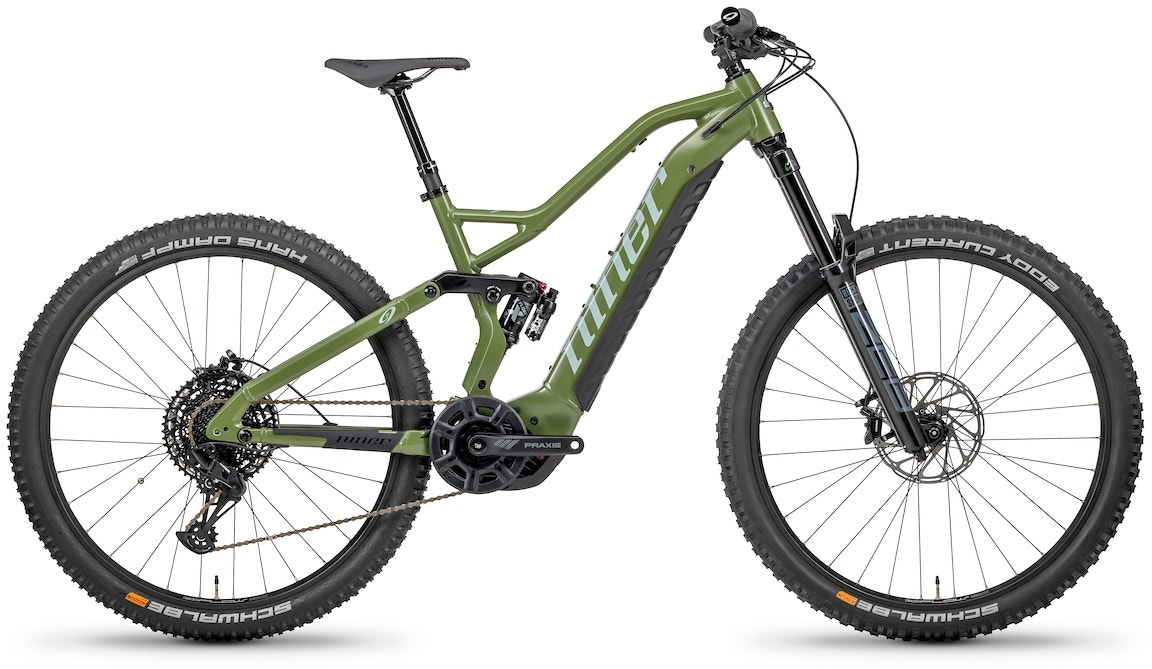

Niner RIP e9 3-star

Niner RIP e9 3-star
$6,699.00
Color: Green/Avalanche Gray
Size: Medium
Wheel Size: 29-inch
Please select options Unavailable

Details

More dirt, more often

Stay out longer, go a little farther, summit sooner
A quick, 150mm-travel trail bike for picking off mid-week missions and day-long excursions

Made with metal
We start with a hand-welded 6061 aluminum frame and a one-piece motor mount that unifies the upper and lower pivot locations with the shock mount for exceptional stiffness. Forged seat- and chainstay yokes, rocker arm, hollowed dropouts, plus our signature Enduro Max Black Oxide pivot bearings, make this all-new Niner chassis rock solid.

Powered by Bosch
A Bosch Performance Line CX motor delivers smooth pedal assist with no surprises. Torque-sensitive, zero-lag power delivery is predictable in all conditions. And the 625wh battery means you can ride farther without fear of losing the juice.

But above all, Niner ride quality is paramount. Accordingly, the RIP e9 suspension behavior was carefully evaluated during development. The addition of pedal assist reduced the importance of Niner’s signature CVA system and the elaborately tuned, highly efficient pedaling platform it offers.

Superior suspension
With the freedom to consider a range of proven, well-suited suspension designs, our engineers turned to (and hot-rodded) a Horst-link 4-bar system. Turning over every rock in pursuit of performance, we adjusted the leverage ratio, shock length, stroke, orientation, and mounting location to elicit Niner’s signature kinematics. Using a “right side up” trunnion shock mount, bearings in the rocker arm are free to rotate smoothly.. The net result is a remarkably supple, balanced suspension curve that’s equally at home going uphill or down, and ready to take on any trail.

Whether you want to rack up more rides per week, wring out more mileage per ride, or just inject the everyday with a dose of extraordinary, the RIP e9 is ready to roll.

Sizes:
Fork Travel (MM)XSSMMDLGXL
(A) TT Length 120 570 585 603 627 652
(B) Seat Tube Length 120 356 394 419 483 533
(C) Chainstay Length Actual 120 430 430 430 430 430
(D) Horizontal Chainstay 120 427 427 427 427 427
(E) Front Center 120 678 693 711 737 764
(F) Wheelbase 120 1102 1117 1136 1162 1189
(G) BB Drop 120 52 52 52 52 52
(H) Headtube Length 120 100 100 110 125 145
(I) Headtube Angle 120 68 68 68 68 68
(J) Seattube Angle 120 74 74 74 74 74
(K) Standover Height 120 698 729 748 800 841
(L) Reach 120 395 410 425 445 465
(M) Stack 120 610 610 620 634 652
Sizes:
SMMEDLG
5'3"–5'9" 5'8"–6'0" 5'11"–6'5"
1.6–1.75M 1.73–1.83M 1.8–1.91M

Specs

Frame NINER RIP E9 150MM TRAVEL, HYDROFORMED AND WELDED 6061-T6 ALUMINUM, INTEGRATED BATTERY COMPARTMENT
Fork ROCKSHOX ZEB R 160MM
Rear Shock FOX FLOAT X PERFORMANCE EVOL 2 POSITION W/ ADJUST 185X55MM TRUNNION
Wheels Front Wheel: Stans NoTubes Flow D 29er, Formula CL-811 hub, centerlock, 110x15mm, Rear Wheel: Stans NoTubes Flow D 29er, Formula ECT 148S hub, centerlock, 148x12mm
Tires Front Tire: SCHWALBE EDDY CURRENT EVO SUPER TRAIL TLE ADDIX SOFT 29X2.4, Rear Tire: SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 29X2.35
Crankset PRAXIS BOSCH G4 ISIS 165MM WITH SRAM DM EAGLE RING 36T
Shifters SRAM SX EAGLE 12SP
Rear Derailleur SRAM SX EAGLE 12SP
Cassette/Freewheel SRAM PG1210 EAGLE 11-50T
Chain SRAM SX EAGLE 12SP
Brakes SRAM GUIDE RE
Rotors SRAM CENTERLINE 200MM CENTERLOCK
Brake Levers SRAM GUIDE RE
Handlebars RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Tape/Grips NINER GRRRIPS L/O NYLON FLANGED
Stem RACE FACE AEFFECT R 780MM WIDE, 20MM RISE, 35MM CLAMP
Headset NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6 | ZS56/40
Seatpost KS LEV SI (S-100MM, MD-125MM, LG-150MM)
Saddle NINER CUSTOM TR WITH CR-MO RAILS, PRINTED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Green/Avalanche Gray / Medium / 29-inch 045352204003 04-535-22-04-00 210000003298
