Details
TAKES YOU ANYWHERE

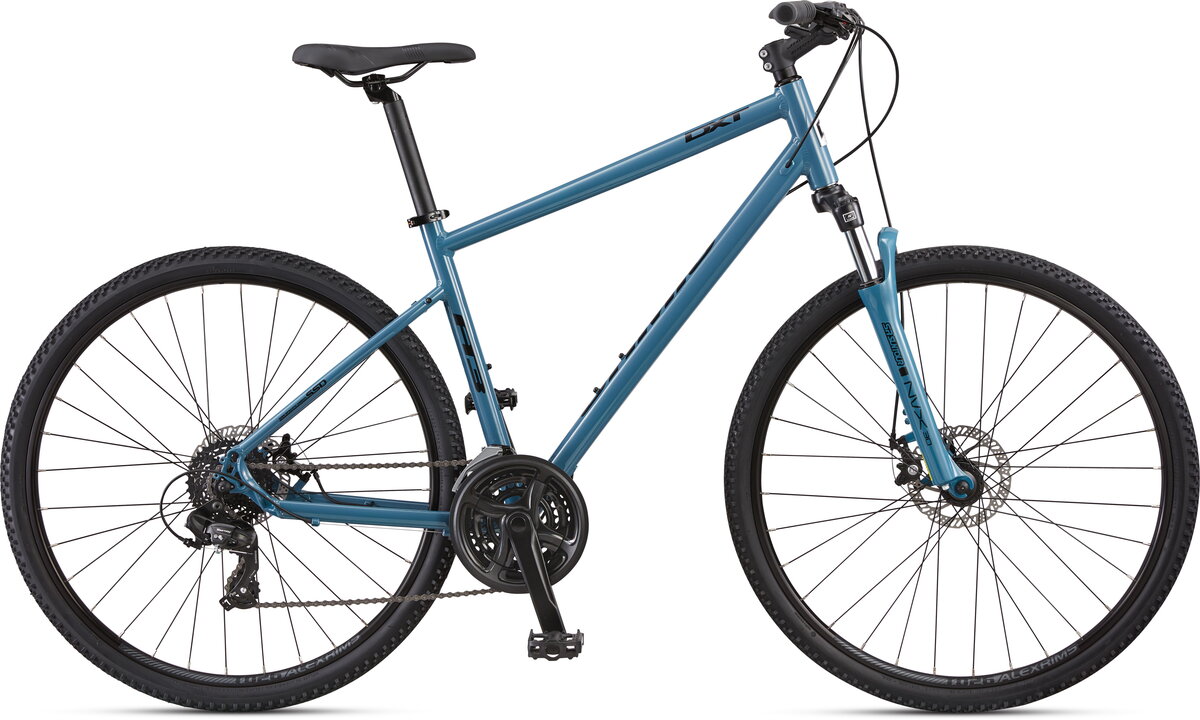

The dual-sport DXT's are pumped-up, go-anywhere/do-anything versions of our Allegro fitness bikes. With more gearing range to take on steeper hills and tougher terrain. Wider tires with a trail-capable tread for access to more riding areas, both paved and packed. And disc brakes and suspension forks for real off-road exploration and off-pavement adventure
GIVING YOU A BREAK
The advantages of disc brakes over rim brakes on a versatile bike like the DXT far exceed their sole disadvantage, weight gain. Besides their incredible power and modulation, they're just plain safer, especially in the rain. Once rims get wet or muddy, using friction to stop the wheel at its circumference is less efficient than using friction to stop a less wet or muddy small diameter disc near the center of the wheel from rotating. And eliminating the rim from braking surface duties results in a longer lasting wheel.
SIZE | 15 | 17 | 19 | 21 | 23 |
---|---|---|---|---|---|
TT EFFECTIVE | 22.95 / 583 | 23.35 / 593 | 23.74 / 603 | 24.09 / 612 | 24.49 / 622 |
HT ANGLE | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
ST ANGLE | 73° | 73° | 73° | 73° | 73° |
CHAINSTAY | 17.32 / 440 | 17.32 / 440 | 17.52 / 445 | 17.52 / 445 | 17.72 / 450 |
WHEELBASE | 42.16 / 1071 | 45.60 / 1082 | 43.27 / 1099 | 43.62 / 1108 | 44.21 / 1123 |
FORK RAKE | 1.57 / 40 | 1.57 / 40 | 1.57 / 40 | 1.57 / 40 | 1.57 / 40 |
BB DROP | 2.36 / 60 | 2.36 / 60 | 2.24 / 57 | 2.24 / 57 | 2.24 / 57 |
HEADTUBE | 5.00 / 127 | 5.51 / 140 | 6.10 / 155 | 6.57 / 167 | 7.05 / 179 |
STANDOVER | 29.45 / 748 | 30.87 / 784 | 31.93 / 811 | 33.38 / 848 | 34.76 / 883 |
STACK | 25.04 / 636 | 25.51 / 648 | 25.98 / 660 | 26.42 / 671 | 25.85 / 682 |
REACH | 15.55 / 395 | 15.79 / 401 | 16.02 / 407 | 16.26 / 413 | 16.50 / 419 |
Specs
Frame | Size Specific Design 6061 aluminum with fast back rear triangle, 1 1/8" head tube, internal cable routing, chain stays disc brake mounts, 34.9mm seat tube, kickstand mount, replaceable derailleur hanger, fender/rack eyelets and ring lock mount eyelets. Slacked headtube angle .5° |
---|---|
Fork | SR/Suntour NVX-DS, aluminum lowers, coil spring, 28mm stanchions, 1-1/8" steerer, 75mm travel |
Wheels | Alex TD26 disc specific double wall alloy rims, 32H, alloy disc hubs with QR and 14g stainless steel spokes |
Tires | CST Dual Sport Tire, 700 x 42c |
Bottom Bracket | Sealed cartridge, 68 x 122.5mm |
Crankset | Forged alloy crank with chain guard, 48/38/28T, 170mm |
Shifters | Shimano Rapid Fire SL-EF500, 2-speed |
Front Derailleur | Shimano TY510 top swing |
Rear Derailleur | Shimano TY300 |
Cassette/Freewheel | SunRace CSM40, 7-speed, 12-34T |
Chain | KMC Z7 |
Brakes | Tektro MD-280 cable-actuated disc brakes with 160mm stainless 6-bolt rotors and Shimano EF41 levers |
Handlebars | Jamis Riser bar, double-butted aluminum, 25.4 x 10° sweep x 20mm rise x 640mm (15"), 660mm (17-23") |
Tape/Grips | ERGO Type Grip |
Stem | Jamis Trekking, 3D forged alloy, 15° rise, Length-60mm (15-17"), 90mm (19-23") |
Headset | Internal Cup, threadless, 1 1/8" |
Seatpost | Jamis alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin |
Saddle | NEW Jamis Touring with SL cover |
Pedals | Platform style |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Blue Smoke / 15-inch | 845436086774 | 03-3868BL | 210000000046 |
Blue Smoke / 17-inch | 845436086781 | 03-3869BL | 210000000047 |
Blue Smoke / 19-inch | 845436086798 | 03-3870BL | 210000000048 |
